Electrical planning guide checked against current Ella's Bubbles and American Standard installation guidance. Exact circuit counts and amperage vary by model and therapy package; local code and the manufacturer's current manual control.
Electrical planning is easy to overlook when shopping for a walk-in tub because the visible features are the seat, door, grab bars and therapy jets.
But once you add pumps, heaters and electronic controls, the tub becomes a piece of bathroom equipment that has to be wired correctly around water. A model that fits the room can still create an expensive surprise if the electrical panel is full, the bathroom has no suitable dedicated circuit, or the chosen therapy package needs more circuits than expected.
This guide is designed to help you identify those issues before you sign a contract or order the tub.
What parts of a walk-in tub use electricity?
Not every walk-in tub is equally electrical.
| Feature | Usually needs power? | Why it matters |
|---|---|---|
| Basic soaking tub | Sometimes no | Gravity drain and standard faucet can work without pumps |
| Whirlpool / hydrotherapy pump | Yes | Motor circulates water through jets |
| Air massage blower | Yes | Air pump powers bubble system |
| Inline water heater | Yes | Helps maintain water temperature during use |
| Heated seat / backrest | Yes | Electrical heating pads or controls |
| Microbubble system | Yes | Uses additional pump/control equipment |
| Chromotherapy / lights | Yes | Usually part of the tub control system |
| Powered quick drain | Model-dependent | Some systems use a pump; others rely on gravity |
The practical lesson is simple: the therapy package can change the electrical scope more than the tub shell itself.
A soaker can be dramatically simpler
If the user’s actual need is safer entry and seated bathing, a plain soaker can be worth considering.
Ella’s current installation guidance says a soaking-only tub with no electrical accessories needs no electrical connection. By contrast, jetted or heated configurations require protected electrical circuits.
That difference can mean:
- less electrical work;
- fewer components to service;
- lower installation complexity;
- fewer future pump or blower repairs.
Hydrotherapy can be valuable for comfort, but it should be a deliberate upgrade rather than an automatic purchase.
What is a dedicated circuit?
A dedicated circuit serves the tub equipment without sharing the same branch circuit with unrelated lights, outlets or appliances.
Current Ella guidance, for example, requires its powered walk-in tubs to use dedicated GFCI-protected circuits, with the number of circuits determined by the therapy package. American Standard installation guidance likewise requires GFCI protection and grounding for powered massage tubs.
Do not assume an existing bathroom receptacle is suitable simply because it is nearby.
Get the exact model number and therapy package first. The electrician needs the current installation manual or electrical diagram for that configuration.
Why GFCI protection matters
A ground-fault circuit interrupter (GFCI) is designed to disconnect power when it detects current leaking to ground.
That protection is particularly important around water and powered bathing equipment.
Manufacturer instructions commonly require GFCI protection for walk-in tubs with electrical systems. Depending on the installation and local rules, protection may be provided at the receptacle, breaker, or another approved arrangement specified by the electrician and manufacturer.
The important homeowner questions are:
- Is every powered tub circuit GFCI protected?
- Can the GFCI be tested and reset without dismantling finished walls?
- Is the panel clearly labeled?
- Does the installation follow the current model manual and local code?
How many circuits can a walk-in tub need?
There is no universal answer.
Ella’s current 2026 technical guidance illustrates how widely requirements can vary:
- some single-system packages use one dedicated circuit;
- packages adding independent foot massage, microbubbles or certain heated features can use two circuits;
- some large multi-pump specialty packages use three circuits.
Most of Ella’s powered systems are currently specified around dedicated 20A / 120V GFCI-protected circuits, although its Flow model and certain limited configurations have different published requirements.
This is a good example of why “walk-in tubs need a 20-amp circuit” is too vague to be useful.
One tub can have several plugs
Modern therapy tubs can contain multiple electrical components under the access panels:
- water pump;
- air blower;
- control box;
- inline heater;
- microbubble pump;
- heated seat/back system.
Some manufacturers group components through a master control box; others provide multiple labeled cords. What matters is that each cord is connected exactly as the manufacturer’s diagram requires.
Never solve a missing outlet with an extension cord or power strip.

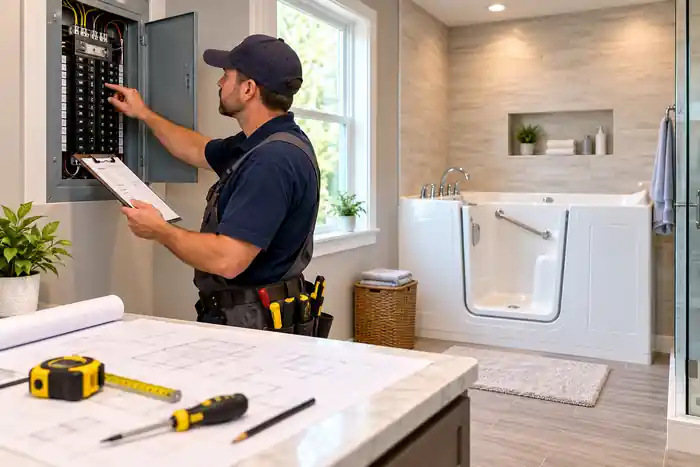

Check the electrical panel before ordering
The tub may be only a few feet from an outlet, but the real question is whether the home’s electrical panel can support the required new circuits.
Ask the electrician to check:
- available breaker spaces;
- service capacity;
- existing bathroom circuits;
- panel condition and age;
- grounding;
- route for new cable;
- whether a subpanel or other upgrade is needed.
In an older home, the electrical upgrade can be more important to the budget than the receptacle itself.
120V does not automatically mean “plug it into any outlet”
Many current walk-in tub systems operate on standard household 120V power.
That does not mean they belong on a normal shared bathroom circuit.
A pump can draw substantial current under load, and a multi-feature tub may have several powered components operating at the same time.
The manufacturer’s required amperage, circuit count and protection must be followed.
Where should the electrical outlets be located?
Placement matters because the receptacles must be:
- reachable by the factory cords;
- protected from inappropriate exposure;
- accessible for inspection and service;
- positioned according to the manufacturer drawing and local code.
Ella’s current technical guidance, for example, places receptacles within the service/equipment area so the labeled factory cords can reach without extension cords.
Do not rough-in the outlets until the exact tub model and orientation are known.
Service access is part of the installation
Pumps, control boxes and heaters eventually need inspection or service.
A beautiful installation can become a maintenance problem if the contractor permanently tiles over the only service access.
Before approving the finish work, confirm:
- which panel provides pump access;
- which panel provides electrical access;
- whether the GFCI can be reset;
- whether a technician can remove a pump without demolishing the bathroom.
Accessibility is not only about the bather. The equipment also needs to remain accessible.
Electrical requirements can change with optional features
One of the easiest mistakes is getting an electrical quote for the base tub, then adding options later.
Features that can change the electrical plan include:
- heated seat/backrest;
- second hydrotherapy pump;
- microbubble system;
- air blower;
- inline heater;
- powered drain;
- digital control package.
Before electrical rough-in, freeze the final feature package and give the electrician the final manufacturer sheet.
Do heated seats need their own circuit?
Not necessarily.
Some systems route the heated seat through a control box rather than providing it with a separate private circuit. But adding the heated option can still change the total circuit count for the package.
For example, Ella’s October 2026 guidance explains that its heated seat/backrest can be powered through the control system while still increasing the overall line requirement on certain packages.
Again, the exact diagram matters more than the feature name.
Walk-in tub electrical planning by product type
| Tub configuration | Electrical planning level | What to verify |
|---|---|---|
| Basic soaker | Low | Whether any heated accessory or powered drain is included |
| Single whirlpool system | Moderate | Pump amperage, dedicated GFCI circuit, grounding |
| Air + whirlpool combination | Moderate to high | Total load and number of required circuits |
| Heated seat/back + therapy | High | Whether option changes circuit count |
| Microbubble / multi-pump system | High | Multiple circuits, service access, panel capacity |
| Large specialty / two-seat tub | Potentially highest | Exact manufacturer electrical schedule |
Coordinate plumbing and electrical rough-in
The plumber and electrician should not work from separate assumptions.
The tub has a finite equipment compartment. Pipes, valves, drains, outlets and pump access all compete for space.
Before walls are closed, both trades should know:
- door/drain orientation;
- service-panel side;
- faucet location;
- pump/control-box locations;
- receptacle locations;
- drain route;
- finished wall thickness.
This is especially important when converting a standard bathtub alcove where utilities were never laid out for powered bathing equipment.
Installation sequence: the practical version
- Choose the exact tub and options.
- Download the current spec sheet and installation manual.
- Confirm the tub fits the user and bathroom.
- Have the electrician inspect panel capacity.
- Have the plumber inspect supply and drain conditions.
- Confirm permits and local requirements.
- Rough in plumbing and electrical to the exact manufacturer drawing.
- Install and level the tub.
- Connect and test every powered component.
- Test the GFCI protection.
- Test fill, drain, leaks and controls before closing access areas.
- Keep service panels accessible.
Our pre-installation electrical checklist
| Question | Answer |
|---|---|
| Exact tub model | _____ |
| Final therapy/options package | _____ |
| Voltage | _____ |
| Required circuit 1 | _____ A |
| Required circuit 2 | _____ A / N/A |
| Required circuit 3 | _____ A / N/A |
| GFCI protection confirmed | Yes / No |
| Dedicated circuits confirmed | Yes / No |
| Panel has capacity | Yes / No |
| Outlet/receptacle locations marked | Yes / No |
| Service panels remain accessible | Yes / No |
| Licensed electrician confirmed | Yes / No |
| Permit/inspection checked | Yes / No |
What can make electrical installation expensive?
The tub itself may need only a few circuits, but the route to provide them can raise the cost.
Common cost drivers include:
- full electrical panel;
- obsolete panel equipment;
- long cable runs;
- finished walls or ceilings that must be opened;
- concrete or masonry routes;
- multiple dedicated circuits;
- required service upgrade;
- permit and inspection fees.
Ask for the electrical work to be priced separately in the project quote so you know what is driving the total.
Red flags in an installation quote
- “We can use the outlet that’s already there” without checking the manual.
- No model-specific electrical diagram.
- No mention of GFCI protection.
- Multiple pumps planned on one circuit despite a manual requiring separate lines.
- Extension cords or power strips.
- No service access after finish work.
- An installer unwilling to identify who performs licensed electrical work.
- Electrical upgrades excluded from a supposedly “complete” installed price without explanation.
Does every walk-in tub need an electrician?
A truly non-powered soaker may not require new tub-specific electrical work.
But once the tub includes powered therapy, heating or controls, the electrical requirements should be reviewed by a qualified electrician and installed in accordance with the manufacturer instructions and local code.
Do not assume a plumber or general remodeler automatically covers electrical licensing in your jurisdiction.
What about older homes?
Older homes deserve extra attention when they have:
- fuse panels;
- crowded or outdated breaker panels;
- ungrounded wiring;
- older two-wire branch circuits;
- bathrooms with very few circuits;
- previous DIY electrical work.
A walk-in tub can be the project that reveals an electrical problem that already existed.
That does not mean the tub is a bad idea. It means the electrical condition belongs in the budget before the installation date.
How this connects to hot-water planning
Electrical and hot-water planning can overlap.
If the existing electric water heater must be upgraded, that upgrade can create additional panel demand. If the tub itself also needs several new dedicated circuits, both projects should be considered together.
Read our Walk-In Tub Water Heater Requirements & Fill/Drain Times guide before assuming the existing electrical service can support every planned upgrade.
Questions to ask the installer before signing
- What is the exact model number and therapy package?
- How many dedicated circuits does the manufacturer require?
- What amperage is required for each circuit?
- Are all powered components GFCI protected?
- Who performs the electrical work?
- Is that work included in the quoted price?
- Has anyone inspected my electrical panel?
- Will the panel need new breakers, a subpanel or an upgrade?
- Where will the receptacles be located?
- Can the GFCI be tested and reset after installation?
- Will the equipment remain accessible for service?
- Are permits and inspection included?
- What happens if the electrician discovers additional work after demolition?
- Will I receive the final installation manual and electrical diagram?
Our verdict
The electrical requirement is not a brand-level number—it is a model-and-feature-level requirement.
A simple soaker may need little or no tub-specific power. A premium multi-therapy model may need several dedicated protected circuits.
The safest and most cost-effective approach is to choose the exact tub first, then have the electrician price the exact manufacturer requirements before you sign the full installation contract.
That prevents one of the most avoidable walk-in tub surprises: discovering after purchase that the bathroom or electrical panel was never ready for the feature package you ordered.
Related guides
- Walk-In Tub Water Heater Requirements & Fill/Drain Times
- Walk-In Tub Dimensions & Bathroom Fit Guide
- Walk-In Tub Door Types
- Walk-In Tub Buying Guide 2026
- Walk-In Tub Cost 2026
- Are Walk-In Tubs Worth It?
Frequently asked questions
Does a walk-in tub need a dedicated electrical circuit?
Powered walk-in tubs commonly require one or more dedicated GFCI-protected circuits. The exact count and amperage depend on the model and feature package. A basic non-powered soaker may require no tub-specific electrical connection.
Does a walk-in tub need GFCI protection?
Manufacturer instructions for powered hydromassage walk-in tubs commonly require GFCI protection. Follow the current installation manual and the electrical code adopted in your area.
Are walk-in tubs 120V or 240V?
Many current residential walk-in tub systems use 120V power, but you should confirm the exact model. Do not infer voltage from the plug shape or from another model in the same brand.
How many amps does a walk-in tub use?
It varies by configuration. Ella’s current powered packages, for example, commonly use dedicated 20A/120V circuits, while selected configurations have different requirements. Use the exact model’s electrical schedule.
Can I plug a walk-in tub into an existing bathroom outlet?
Do not assume so. Powered tubs can require dedicated circuits and GFCI protection. An electrician should compare the existing circuit with the manufacturer requirements.
Can I use an extension cord for a walk-in tub?
No. Install the required receptacles where the factory cords can reach them and follow the manufacturer instructions.
Does a heated seat need its own circuit?
Not always. Some systems power the heated seat through a control box, but adding the feature can still change the total required circuit count.
Does a soaking-only walk-in tub need electricity?
Some basic soakers can operate without tub-specific electricity when they use conventional plumbing and gravity drainage and have no powered accessories.
Should the electrician work before or after the tub arrives?
Electrical planning should happen before installation, but rough-in should be based on the exact current model drawing and final feature package. Final connections and testing occur during installation.
What should I keep accessible after installation?
Keep required service panels, pumps, controls, electrical receptacles and GFCI reset/test access available according to the manufacturer manual. Do not permanently cover service equipment with tile or cabinetry.
Official sources and research notes
- Ella’s Bubbles — Electrical Requirements by Model
- Ella’s Bubbles — Dedicated Circuits for Walk-In Tubs
- Ella’s Bubbles — Plumbing, Electrical & Space Requirements
- Ella’s Bubbles — Heated Seat Electrical Requirements
- American Standard — Walk-In Bath Installation / Electrical Safety Guidance
Accessible Bath Advisor is an independent educational publication. Electrical requirements vary by model, options, local code and home conditions. The manufacturer installation manual and the licensed electrician/inspector have the final say for a specific installation.
